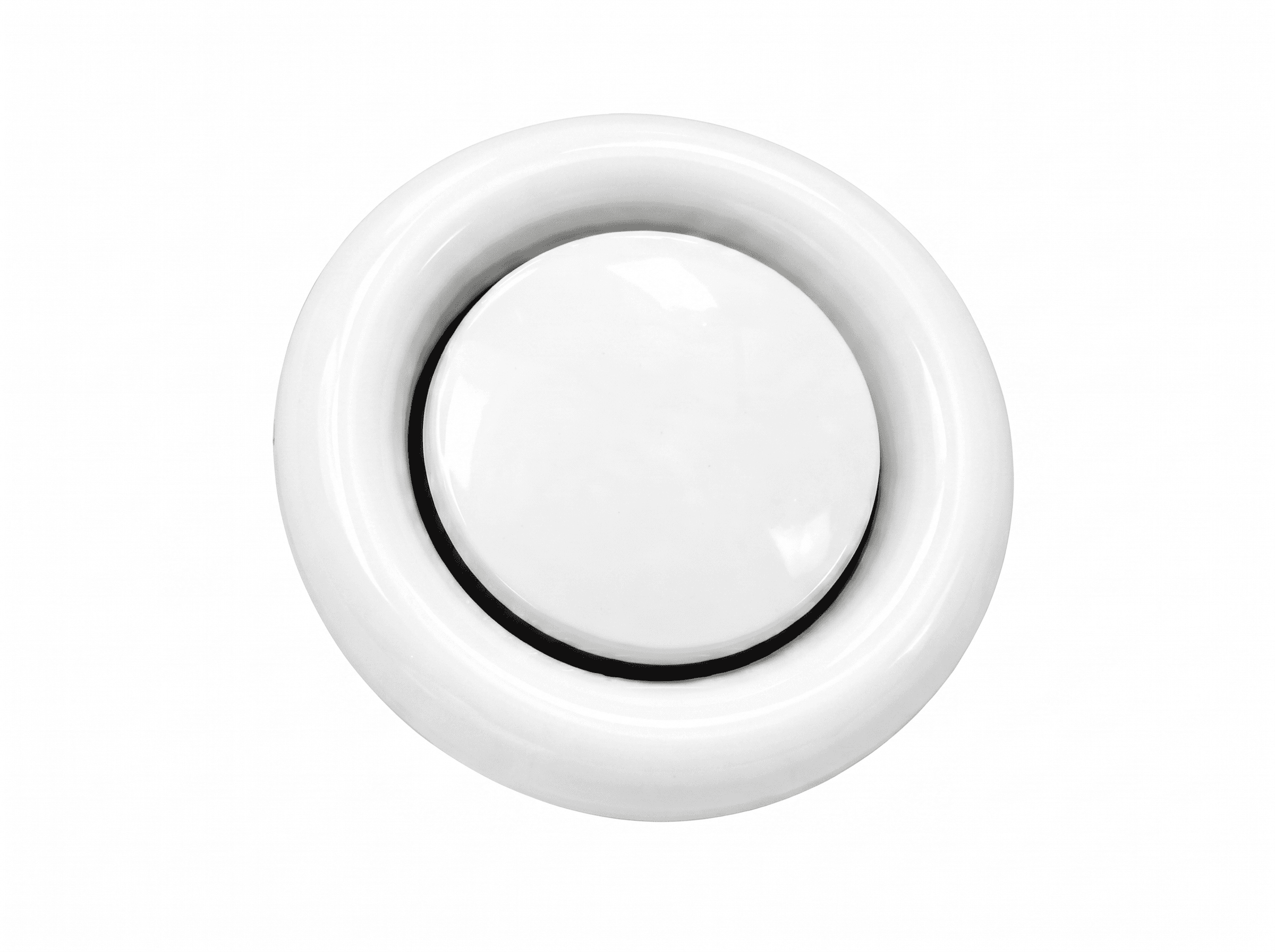

Air Valve – Extract
Pressed steel air extract valve for wall or ceiling installation. Adjustable core for simple airflow regulation. Supplied with a 42mm mounting frame.
MaterialPressed steel (galvanised mounting)
FinishRAL 9010 and RAL 9016 (other RAL on request)
Mounting frame42 mm
Ø 100–200 mm
Need help selecting? Call 01536 519 922
Sizes & item codes
Item Code | Size (mm) | Neck A (mm) | Face B (mm) | Height H (mm) |
|---|---|---|---|---|
237210E | 100 | 98 | 150 | 42 |
237212E | 125 | 123 | 175 | 42 |
237215E | 150 | 148 | 200 | 42 |
237216E | 160 | 159 | 210 | 42 |
237220E | 200 | 198 | 250 | 42 |
Get a quote on Air Valve – Extract
UK-stocked. Trade pricing available. Fast delivery nationwide.
