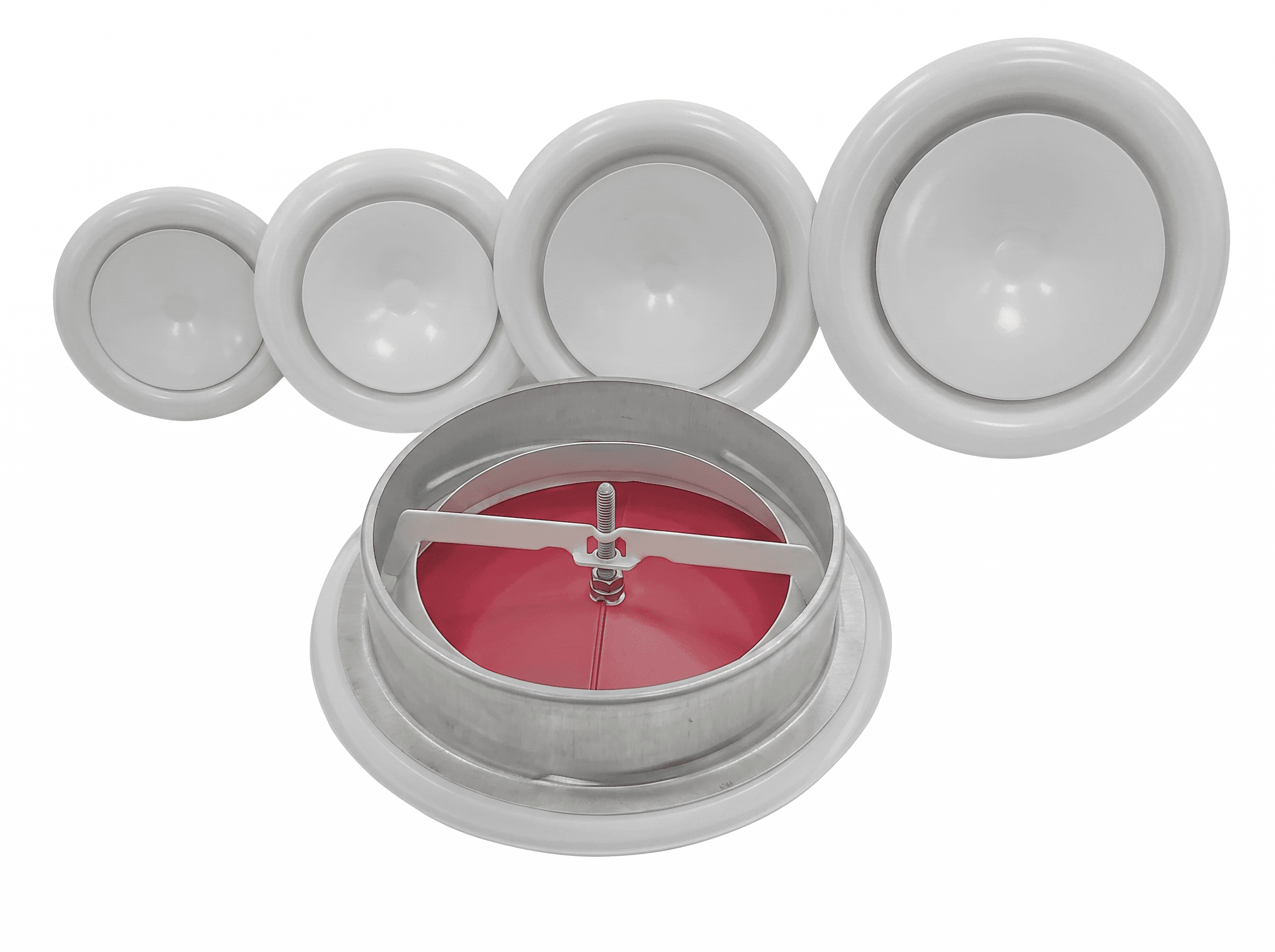

Air Valve – Fire Rated
Fire-rated air valves for recessed ceiling installations in fire-rated floor/ceiling constructions. In a fire, integral intumescent material expands to seal the valve and help maintain the ceiling's fire resistance.
Fire Rated
Fire rating60 minutes (solid timber joist floor/ceiling)
ComplianceApproved Document B (Fire Safety)
VariantsSupply (-FR-9016) and Extract (E-FR-9016)
Ø 100–200 mm
Need help selecting? Call 01536 519 922
Sizes & item codes
Supply
Item Code | Exact Neck (mm) | Face (mm) | Height (mm) |
|---|---|---|---|
237210-FR-9016 | 100 | 150 | 42 |
237212-FR-9016 | 125 | 175 | 42 |
237215-FR-9016 | 150 | 200 | 42 |
237220-FR-9016 | 200 | 250 | 42 |
Extract
Item Code | Exact Neck (mm) | Face (mm) | Height (mm) |
|---|---|---|---|
237210E-FR-9016 | 100 | 150 | 42 |
237212E-FR-9016 | 125 | 175 | 42 |
237215E-FR-9016 | 150 | 200 | 42 |
237220E-FR-9016 | 200 | 250 | 42 |
Get a quote on Air Valve – Fire Rated
UK-stocked. Trade pricing available. Fast delivery nationwide.
