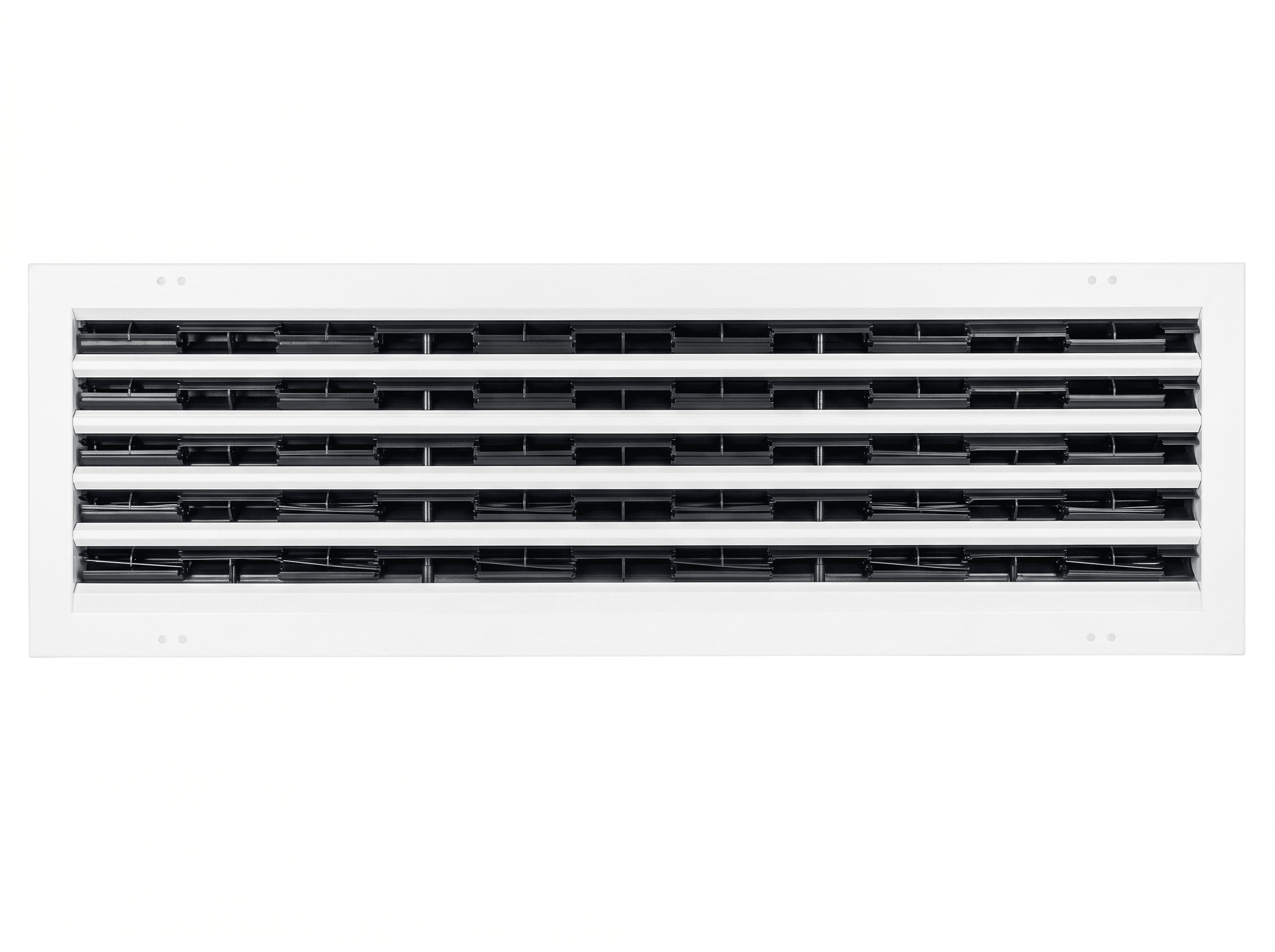

BSD-HI Micro-Jet Slot Diffuser
Aluminium slot diffuser with individual barrel arrangement for high-induction micro-jet airflow. Rapidly reduces velocity and temperature differential.
MaterialExtruded aluminium
FinishRAL 9010 (alternatives available)
VariantsBSD-HI-16 and BSD-HI-18
1–8 slot configurations
Need help selecting? Call 01536 519 922
Sizes & item codes
BSD-HI-16
No of Slots | Dim A (mm) | Dim B (mm) | Dim C (mm) | Dim D (mm) |
|---|---|---|---|---|
1 | 40.5 | 74.5 | 50.5 | 39 |
2 | 72 | 106 | 82 | 39 |
3 | 104 | 138 | 114 | 39 |
4 | 136 | 170 | 146 | 39 |
BSD-HI-18
No of Slots | Dim A (mm) | Dim B (mm) | Dim C (mm) | Dim D (mm) |
|---|---|---|---|---|
5 | 47.6 | 114.6 | 57.6 | 59 |
6 | 86 | 153 | 96 | 59 |
7 | 135 | 202 | 145 | 59 |
8 | 184 | 251 | 194 | 59 |
