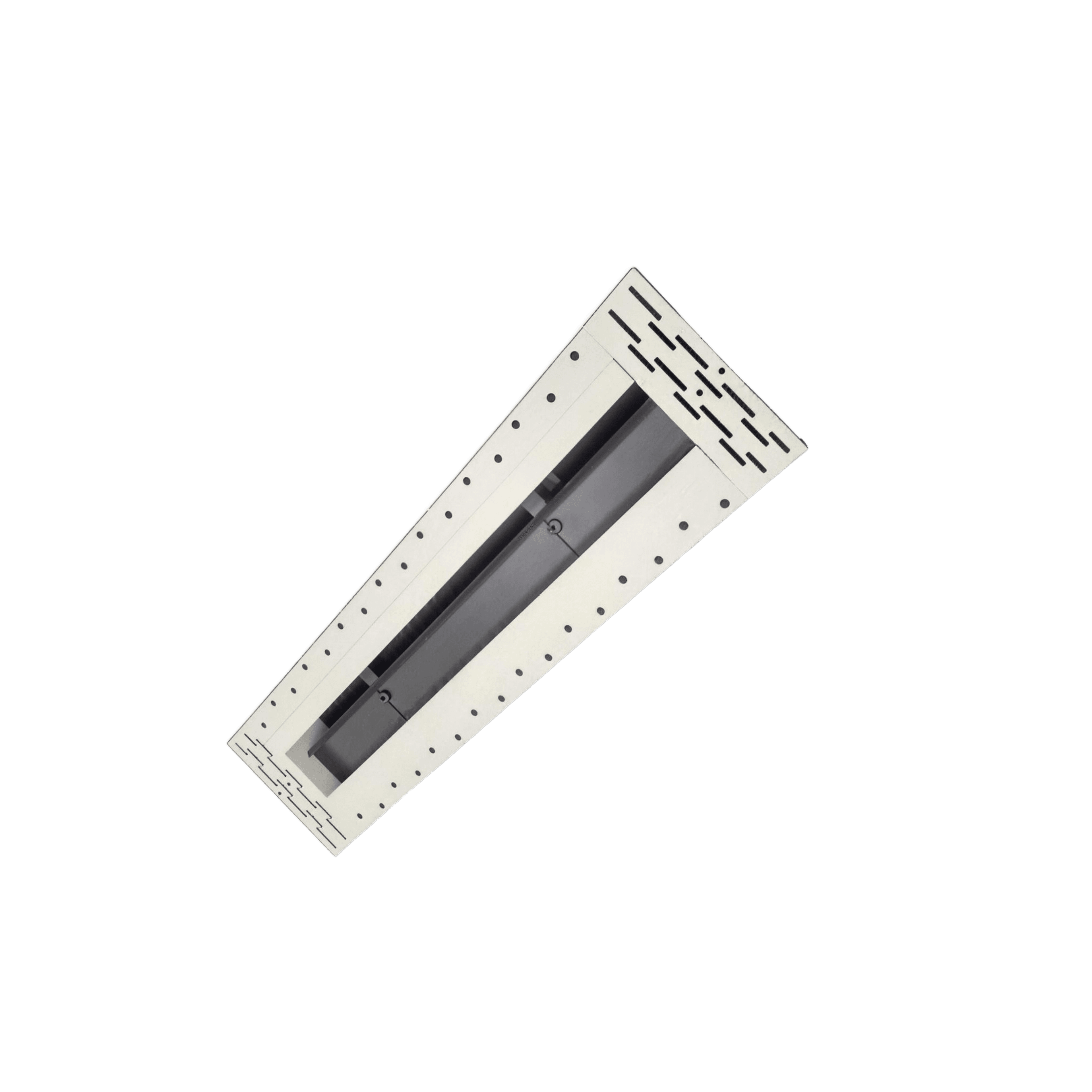

High Capacity Slot Diffuser (BSHC)
High capacity slot diffuser for supply and extract air, designed for ceiling or wall mounting. It gives a discreet architectural slot in the ceiling while handling higher volumes of air, and its blade system allows flexible orientation of the supply air pattern.
Slot width 35 mm or 50 mm. Made to order.
Need help selecting? Call 01536 519 922
Sizes & item codes
Slot Width (mm) | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
35 | 75 | 111 | 85 | 50 |
50 | 90 | 126 | 100 | 50 |
Options
Order code: BSHC – slot width (35 or 50) – end flange (0, 1EF or 2EF) – finish (RAL colour). The frame fixes to a pre-installed plenum box with M5 screws, and the blade is then positioned to suit the required air direction. Performance data on the data sheet is based on 1 m active length. Made to order.
