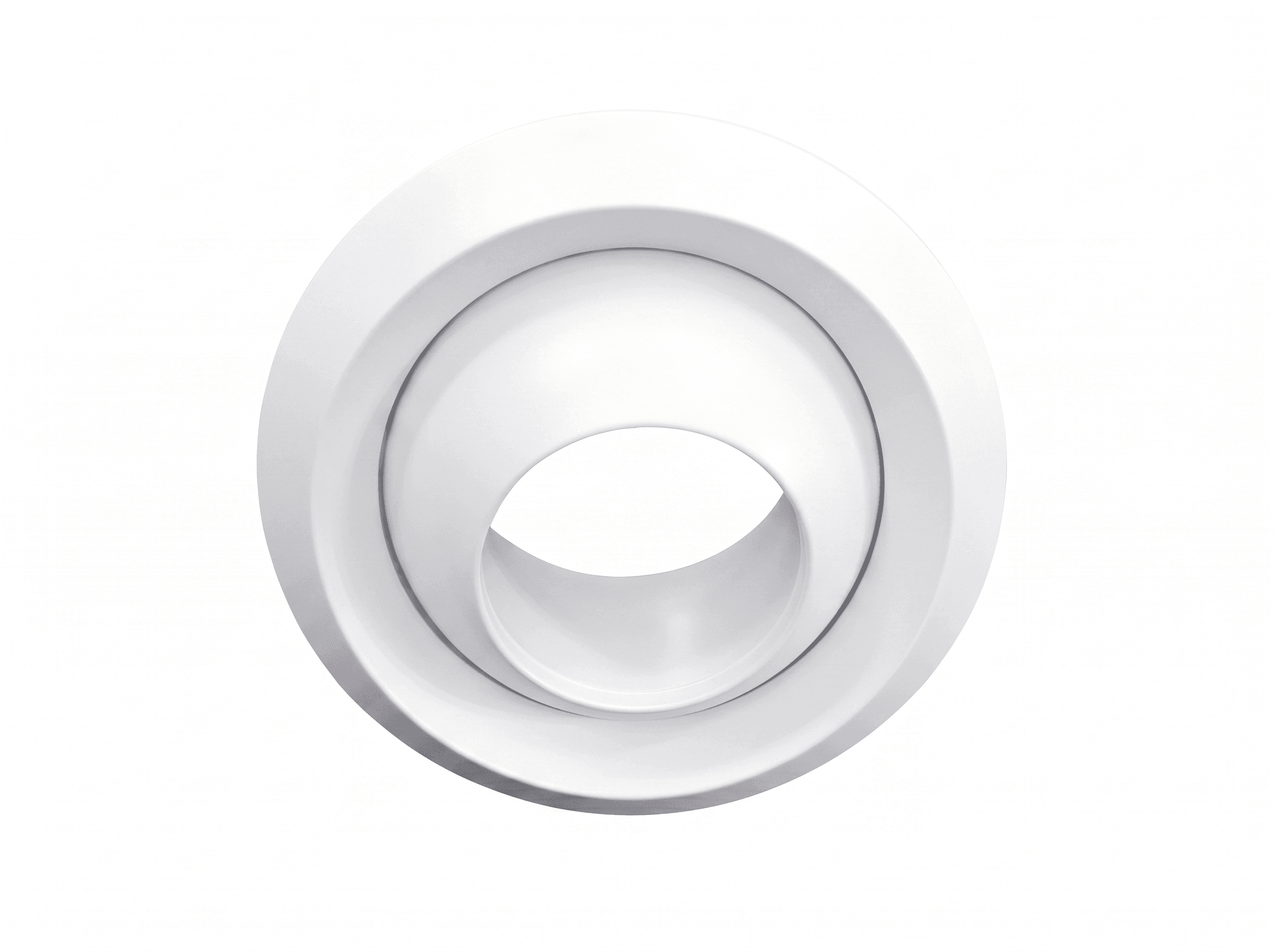

Jet Nozzle (JNS)
Long-throw jet nozzle for moving large air volumes over distance. Fully adjustable direction by rotating the centre ball. Aluminium nozzle with galvanised steel connection and plastic mounting ring.
MaterialAluminium nozzle + galvanised steel + plastic
FinishPowder-coated RAL 9010
Max working temp90°F
Neck Ø 98–396 mm
Need help selecting? Call 01536 519 922
Sizes & item codes
Item Code | Exact Neck D1 (mm) | Nozzle Opening D2 (mm) | Face D3 (mm) | Height L (mm) |
|---|---|---|---|---|
210100 | 98 | 60 | 148 | 85 |
210125 | 123 | 64 | 170 | 80 |
210150 | 148 | 75 | 200 | 85 |
210160 | 158 | 85 | 210 | 98 |
210200 | 198 | 108 | 255 | 112 |
210250 | 248 | 136 | 301 | 143 |
210315 | 310 | 186 | 380 | 160 |
210400 | 396 | 230 | 467 | 182 |
Options
Can be powder coated to another RAL colour to suit requirements.
