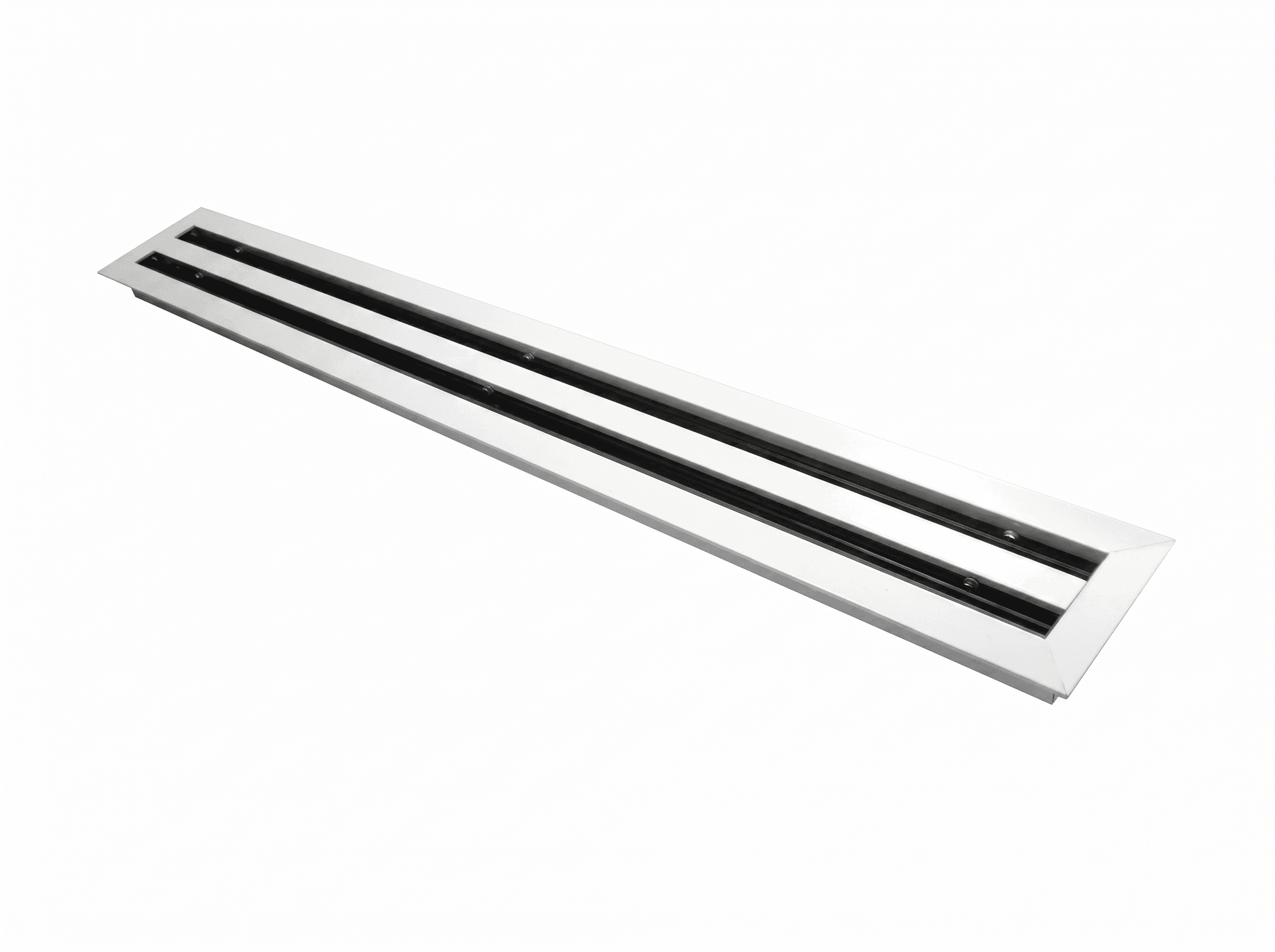

Linear Slot Diffuser (LSD)
Aluminium linear slot diffuser for ceiling or high-sidewall supply. Set lengths or continuous lines. 1–8 slot modules in Fixed Core or Removable Core.
MaterialExtruded aluminium
FinishRAL 9010 (alternatives available)
Max section length2.0 metres
1–8 × 20mm slot modules
Need help selecting? Call 01536 519 922
Sizes & item codes
No of Slots (20mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) |
|---|---|---|---|
1 | 60 | 89 | 70 |
2 | 105 | 134 | 115 |
3 | 150 | 179 | 160 |
4 | 195 | 224 | 205 |
5 | 240 | 269 | 250 |
6 | 285 | 314 | 295 |
7 | 330 | 359 | 340 |
8 | 395 | 404 | 385 |
Options
Non-standard slot and neck widths available on request. Plaster-in type also available. Plenum boxes available.
