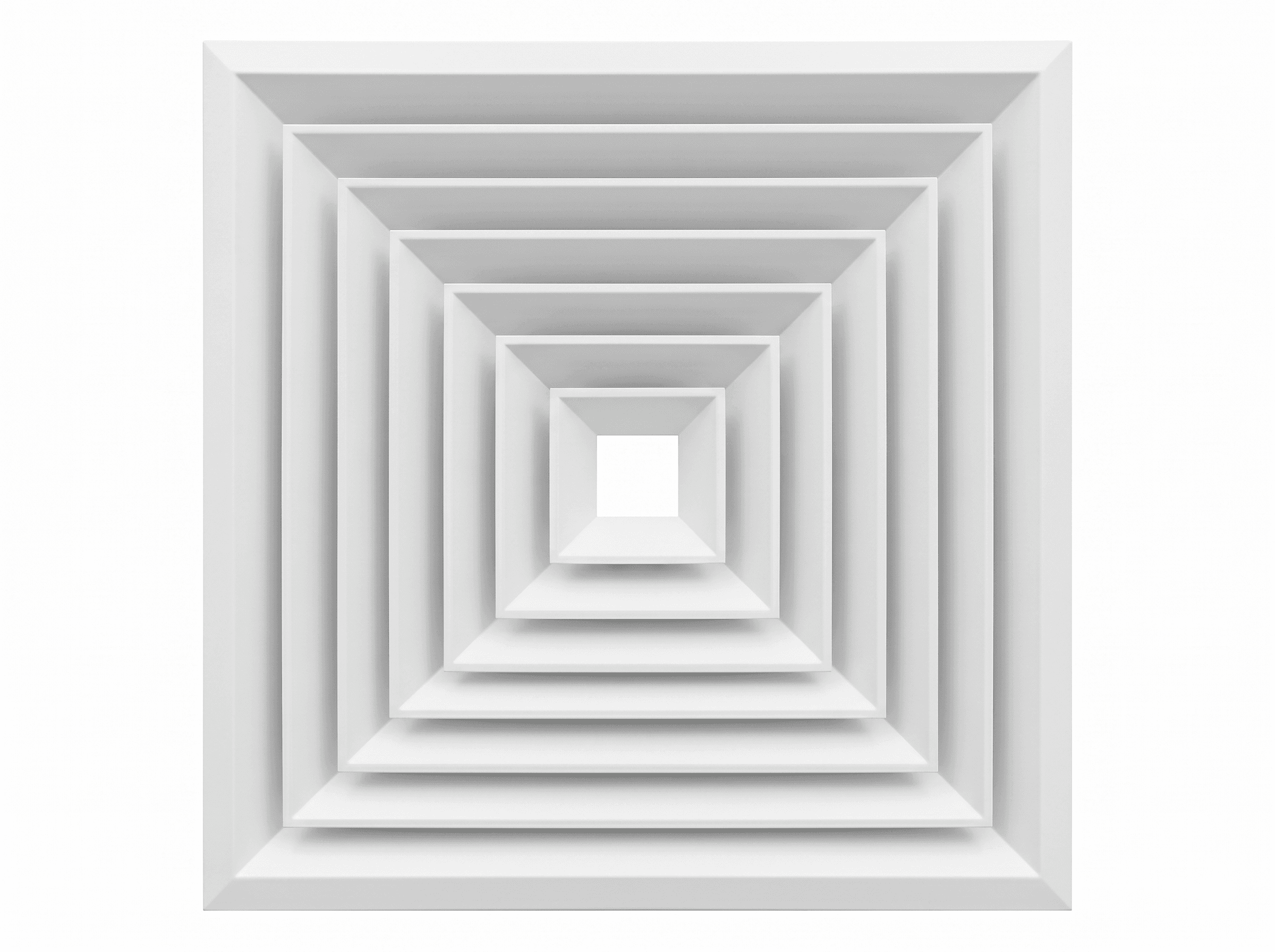

Louvre Faced Diffusers (LFD)
Extruded aluminium square diffusers for ceiling applications. Available in 1, 2, 3 and 4-way blow configurations with standard RAL 9010 white powder-coat finish. Opposed blade damper options available.
Neck sizes 150×150mm to 450×450mm
Need help selecting? Call 01536 519 922
Sizes & item codes
Flush Face Diffuser – 4 Way Blow
Item Code | Nominal Neck (mm) | Exact Neck (mm) | Ceiling Opening (mm) | Face X x Y (mm) |
|---|---|---|---|---|
248001 | 150 x 150 | 146 x 146 | 225 x 225 | 295 x 295 |
248002/200 N | 200 x 200 | 196 x 196 | 275 x 275 | 345 x 345 |
248002 | 225 x 225 | 221 x 221 | 300 x 300 | 370 x 370 |
248002/250 N | 250 x 250 | 246 x 246 | 325 x 325 | 395 x 395 |
248003 | 300 x 300 | 296 x 296 | 380 x 380 | 450 x 450 |
248004/495x495 | 350 x 350 | 346 x 346 | 425 x 425 | 495 x 495 |
248004 | 375 x 375 | 371 x 371 | 450 x 450 | 520 x 520 |
248005 | 450 x 450 | 446 x 446 | 525 x 525 | 595 x 595 |
Options
Opposed Blade Damper variants. All 4-way sizes are stocked in RAL9010 & RAL9016. 248005/TEG 8 - Tegular 8mm 4-way Blow Diffuser 450 x 450mm Neck. 248100 - Plastic 4-way Blow Diffuser 480 x 480 Neck. 231400 - Double Tile 4-Way Blow Diffuser 1050x450 Neck. Also available in 1-Way, 2-Way, 2-Way Corner, 3-Way and 4-Way Black variants across 150 × 150mm to 450 × 450mm neck sizes.
