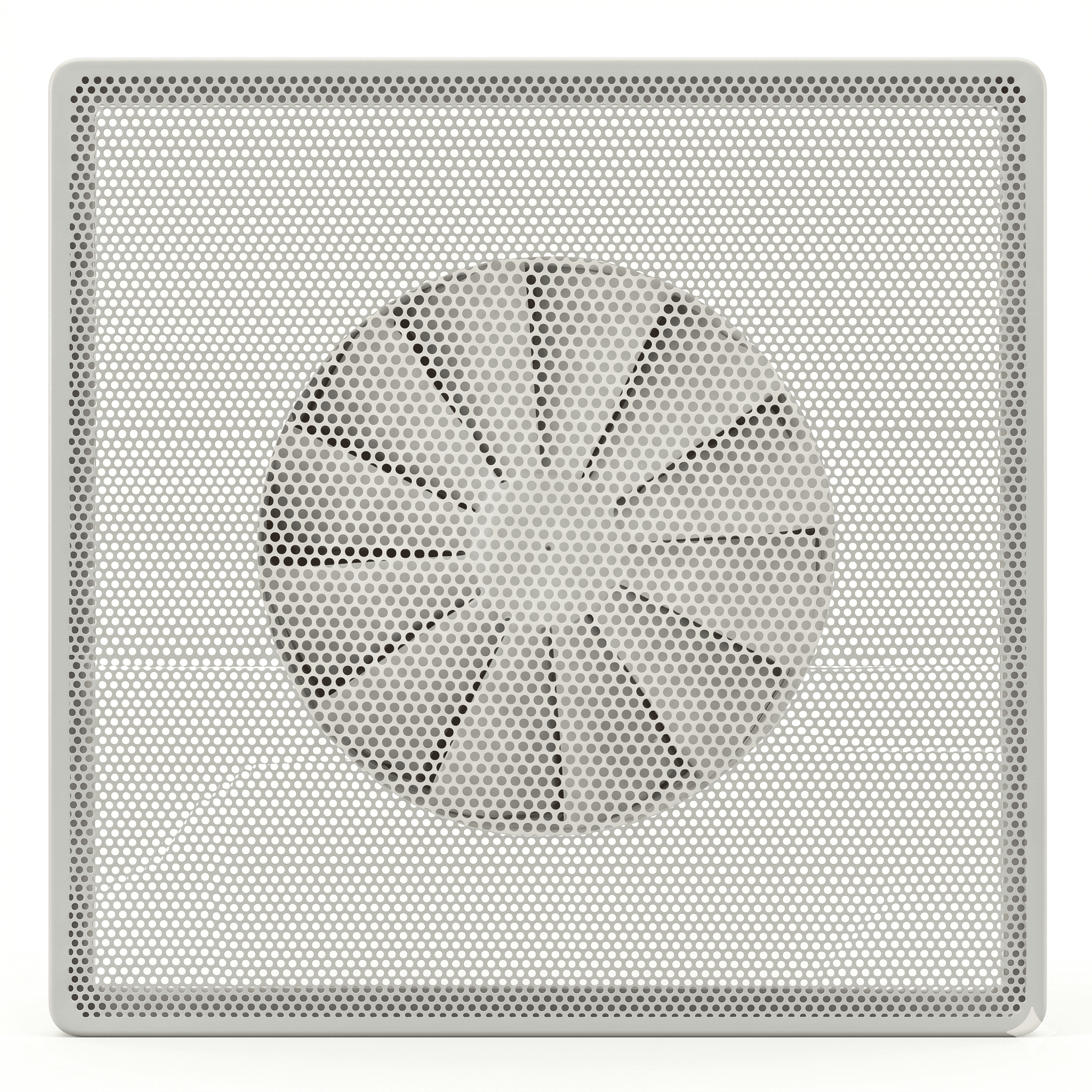

Perforated Face Swirl Diffuser – Square
Square perforated face swirl diffuser for large temperature differentials. High-induction rotating airflow for effective mixing and even distribution. Available in lay-in and hinged variants.
Neck 157–447 mm, 595×595 face
Need help selecting? Call 01536 519 922
Sizes & item codes
Fixed with frame
Item Code | Exact Neck (mm) | Face (mm) | Height (mm) |
|---|---|---|---|
248108 | 157 | 595 x 595 | 10 |
248109 | 247 | 595 x 595 | 10 |
248110 | 312 | 595 x 595 | 10 |
248111 | 397 | 595 x 595 | 10 |
248112 | 447 | 595 x 595 | 10 |
Fixed no frame
Item Code | Exact Neck (mm) | Face (mm) | Height (mm) |
|---|---|---|---|
248108 NF | 157 | 595 x 595 | 10 |
248109 NF | 247 | 595 x 595 | 10 |
248110 NF | 312 | 595 x 595 | 10 |
248111 NF | 397 | 595 x 595 | 10 |
248112 NF | 447 | 595 x 595 | 10 |
Hinged
Item Code | Exact Neck (mm) | Face (mm) | Height (mm) |
|---|---|---|---|
248113 | 157 | 595 x 595 | 40 |
248114 | 247 | 595 x 595 | 40 |
248115 | 312 | 595 x 595 | 40 |
248116 | 397 | 595 x 595 | 40 |
248117 | 447 | 595 x 595 | 105 |
Options
197mm and 297mm neck sizes available as TBC. Intermediate sizes to request.
