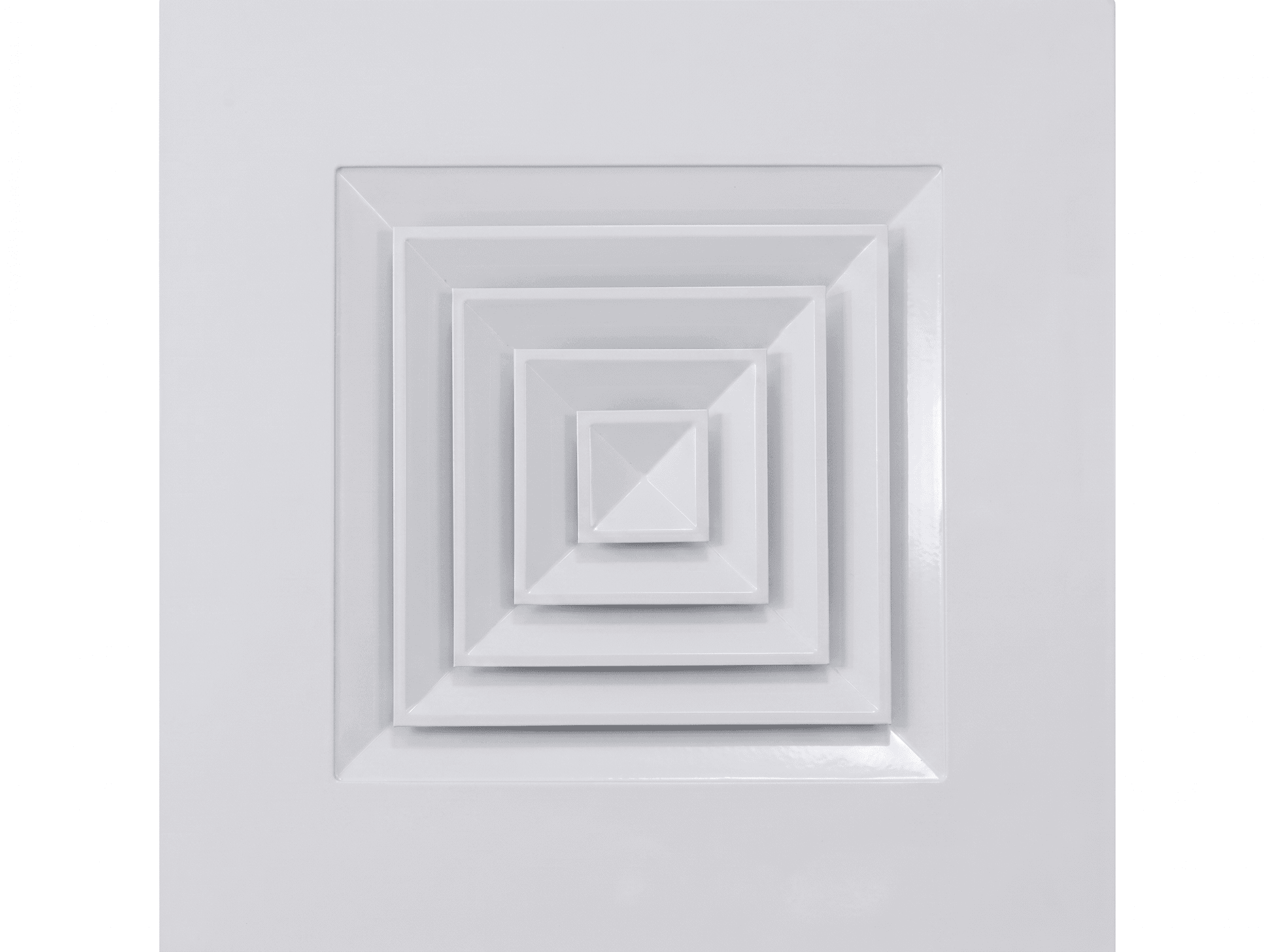

Plaque Ceiling Diffusers (Metal)
Architectural plaque ceiling diffuser with steel frame and aluminium core. Flush frame for surface or T-Bar ceilings, 4-way airflow, removable core.
MaterialSteel frame, extruded aluminium core
FinishRAL 9010 white powder coat
Airflow4-way directional
CoreRemovable
Neck 150×150 to 375×375 mm, 595×595 face
Need help selecting? Call 01536 519 922
Sizes & item codes
Item Code | Nominal Neck (mm) | Exact Neck (mm) | Face X x Y (mm) | Height (mm) |
|---|---|---|---|---|
247800 | 150 x 150 | 145 x 145 | 595 x 595 | 51 |
247801 | 225 x 225 | 220 x 220 | 595 x 595 | 51 |
247802 | 300 x 300 | 295 x 295 | 595 x 595 | 51 |
247803 | 375 x 375 | 370 x 370 | 595 x 595 | 51 |
Options
Opposed Blade Damper variants available.
