Swirl Diffuser (SSW)
Ceiling-mounted swirl diffuser with straight-vane swirl pattern for high induction. Fast velocity and temperature decay improves comfort. Manufactured to suit most ceiling tile modules (lay-in, tegular, clip-in metal and circular).
Nominal size 200–535 mm
Need help selecting? Call 01536 519 922
Sizes & item codes
SSW-24-L Lay-in Ceiling Type
Nominal Size (mm) | Face (mm) | Neck (mm) |
|---|---|---|
200 | 595 x 595 | 197 |
300 | 595 x 595 | 297 |
350 | 595 x 595 | 347 |
450 | 595 x 595 | 447 |
500 | 595 x 595 | 500 |
535 | 595 x 595 | 535 |
SSW-24-T Tegular Ceiling Type
Nominal Size (mm) | Face (mm) | Neck (mm) |
|---|---|---|
200 | 574 / 584 | 197 |
300 | 574 / 584 | 297 |
350 | 574 / 584 | 347 |
450 | 574 / 584 | 447 |
500 | 574 / 584 | 500 |
535 | 574 / 584 | 535 |
SSW-24-M Clip-in Metal Ceiling Type
Nominal Size (mm) | Face (mm) | Neck (mm) |
|---|---|---|
200 | 599 x 599 | 197 |
300 | 599 x 599 | 297 |
350 | 599 x 599 | 347 |
450 | 599 x 599 | 447 |
500 | 599 x 599 | 500 |
535 | 599 x 599 | 535 |

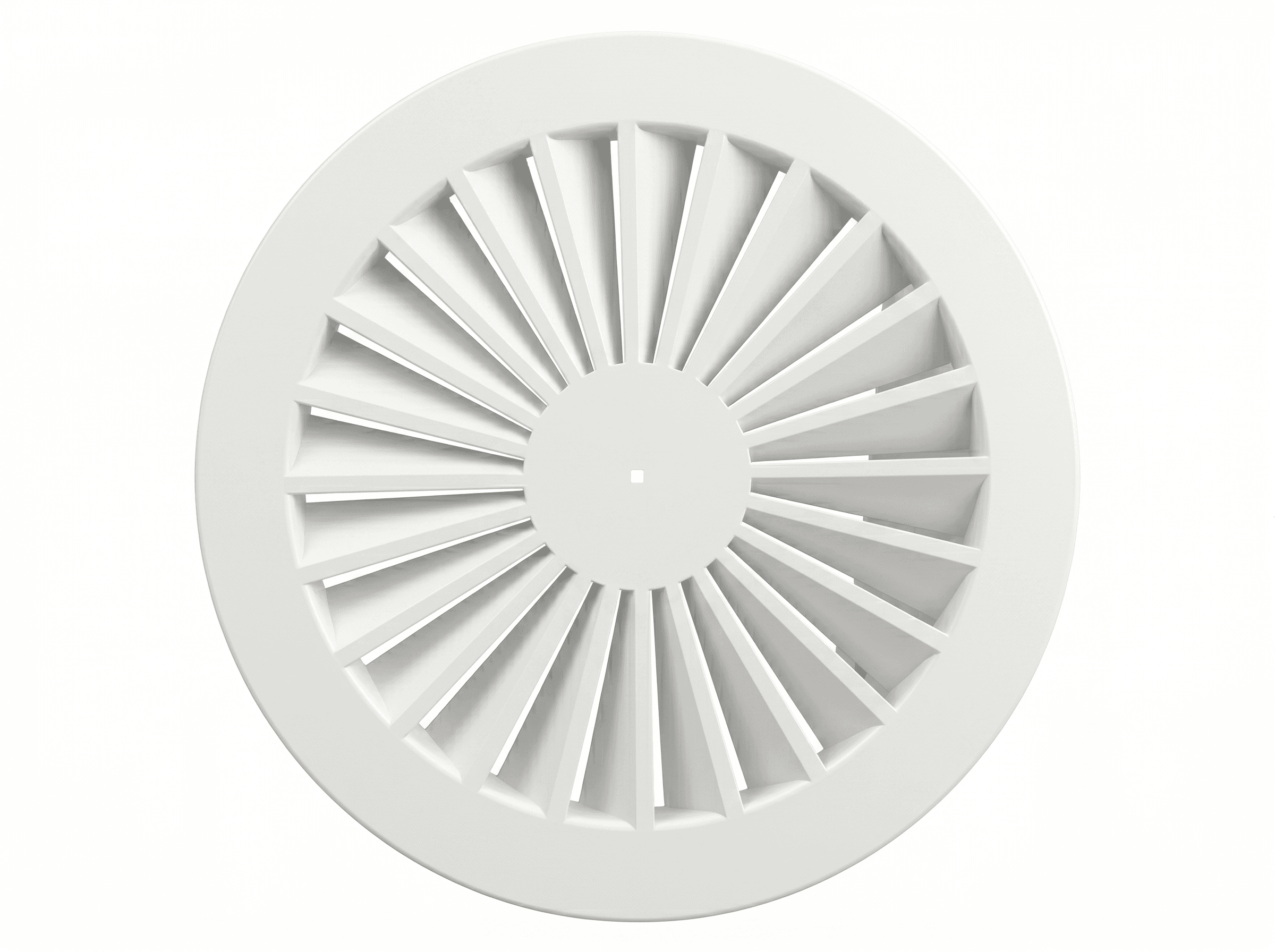

SSW-24-C Circular Swirl Diffuser
Nominal Size (mm) | Face (mm) | Neck (mm) |
|---|---|---|
200 | 300 Dia | 197 |
300 | 400 Dia | 297 |
350 | 500 Dia | 347 |
450 | 600 Dia | 447 |
500 | 600 Dia | 500 |
535 | 600 Dia | 535 |
Options
Supplied with M5 screws and caps as standard.
