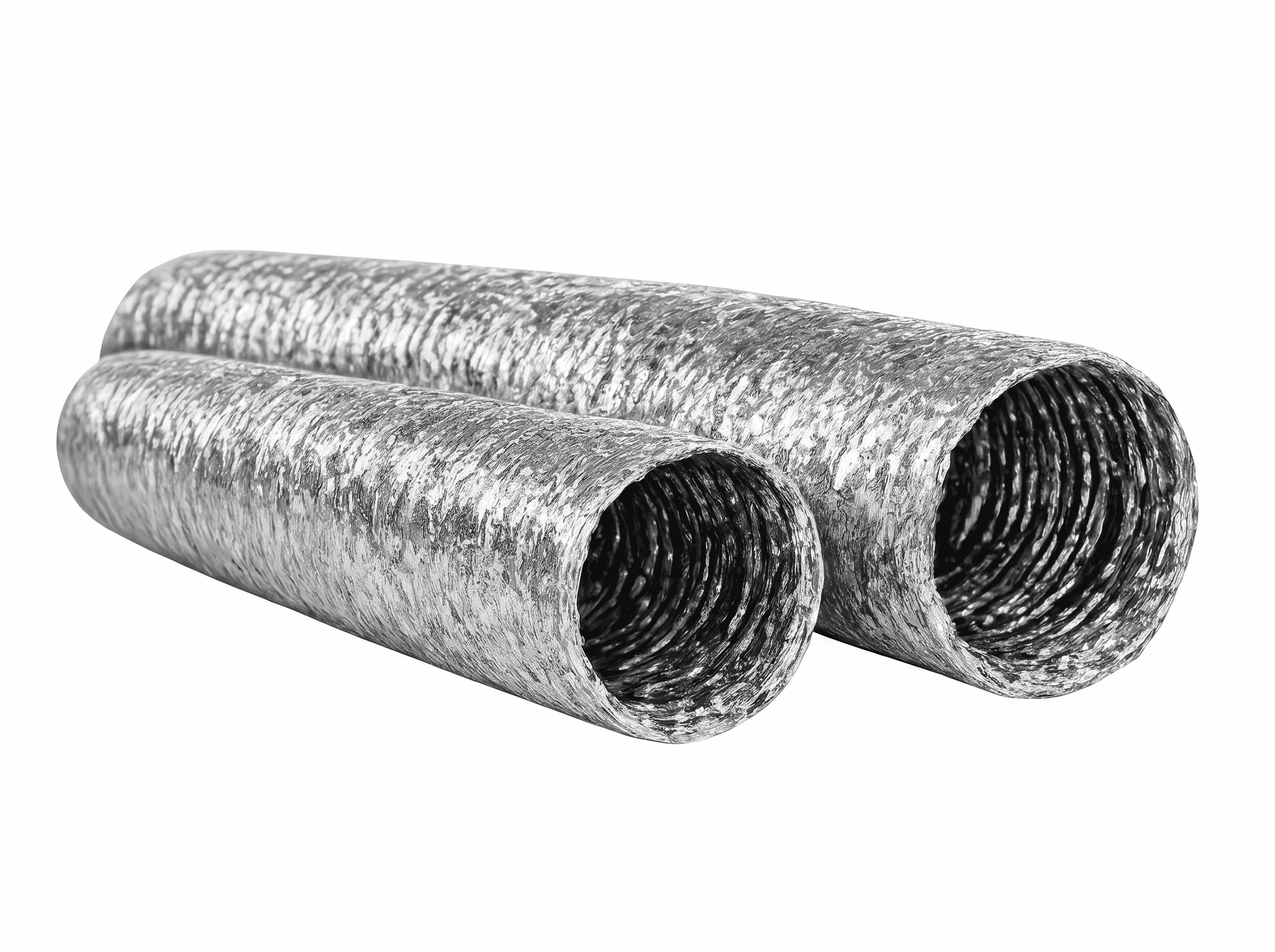

Non-Insulated Flexible Duct (MCFR)
Flexible laminate duct with multiple aluminium-polyester layers and a steel spiral helix. Sandwich construction; fire resistance tested to UK standards.
Fire RatedBS476 Compliant
Available diametersØ 102 mm – Ø 406 mm
Standard length10 metres
Wire pitch12, 18 & 25 mm
Operating temperature-30°C to +250°C
Max. working pressure3000 Pa
Fire classificationBS476 : Part 6, 7 & 20
Ø 102 mm – Ø 406 mm, 10m standard length
Need help selecting? Call 01536 519 922
Sizes & item codes
Item Code | Diameter (mm) |
|---|---|
160074/10 | Ø 102 |
160074A/10 | Ø 127 |
160075/10 | Ø 152 |
160076/10 | Ø 203 |
160077/10 | Ø 254 |
160078/10 | Ø 305 |
160079/10 | Ø 315 |
160080/10 | Ø 355 |
160081/10 | Ø 406 |
Options
Supplied in individual box of 0.4 metres.
